In industrial applications, piping systems undergo continuous changes in temperature and pressure, leading to expansion and contraction. These movements can cause stress, fatigue, or even cracks in the pipes if not managed properly. This is where metal expansion joints play a crucial role. They are engineered components designed to absorb these movements, ensuring the safety, reliability, and longevity of pipelines across various industries. From power generation to chemical processing, metal expansion joints are indispensable for maintaining optimal performance in fluid and gas transportation systems.
What Are Metal Expansion Joints?

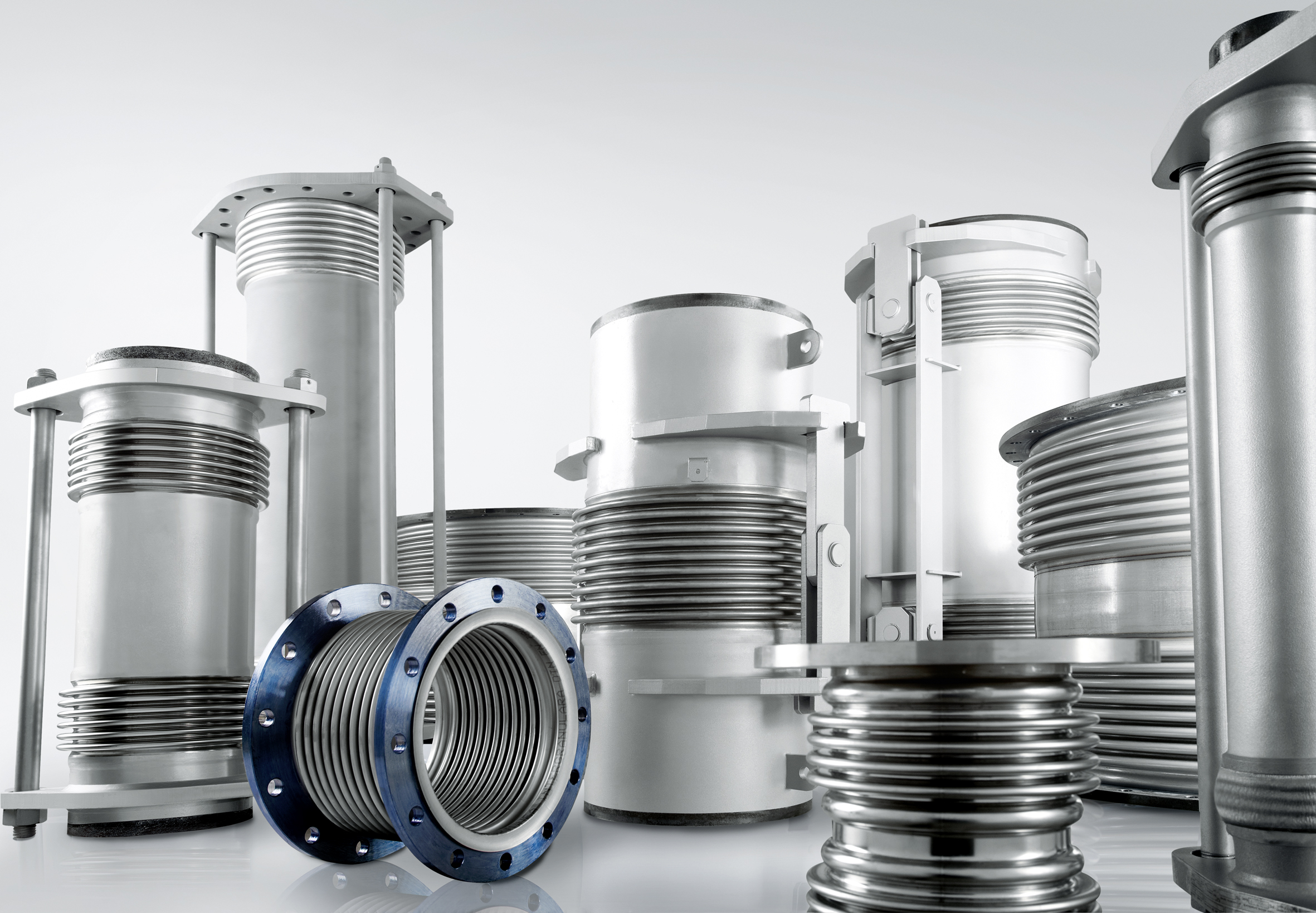

Metal expansion joints, also known as compensators, are flexible connectors used to absorb dimensional changes caused by thermal expansion, mechanical vibration, or pressure fluctuations in a piping system. They are typically made of stainless steel or other high-strength alloys, offering flexibility while maintaining durability under extreme conditions.
A typical metal expansion joint consists of three key parts:
-
Bellows: The flexible part that absorbs movement.
-
End fittings: Such as flanges, weld ends, or threaded ends, which connect the joint to the pipe.
-
Accessories: Including tie rods, liners, and covers that enhance performance and protect the bellows.
These components work together to manage axial, lateral, and angular movements effectively.
Types of Metal Expansion Joints
There are various types of metal expansion joints, each designed to address specific types of movements and applications:
1. Axial Expansion Joints
These joints absorb movement along the longitudinal axis of the pipe. They are ideal for systems where temperature variations cause the pipe to expand or contract in length.
2. Lateral Expansion Joints
Lateral expansion joints compensate for movements that occur perpendicular to the pipe axis. They are commonly used in systems where misalignment or directional shifts occur.
3. Angular Expansion Joints
These joints handle angular rotations that occur at one or more points along the pipeline. They are often used in combination with gimbal or hinged designs to manage complex movement patterns.
4. Universal Expansion Joints
A combination of axial and lateral expansion joints, the universal design provides multi-directional flexibility. It consists of two bellows connected by a center spool, allowing for greater adaptability.
5. Hinged and Gimbal Expansion Joints
These joints are equipped with hinges or gimbals to control movement in a specific direction while restraining others. They are often used in high-pressure systems to ensure precise motion control.
Materials Used in Metal Expansion Joints
The performance of a metal expansion joint depends largely on the material used in its construction. Common materials include:
-
Stainless Steel (304, 316, 321): Offers corrosion resistance, flexibility, and durability.
-
Inconel and Monel: Suitable for high-temperature and corrosive environments.
-
Hastelloy: Used in highly corrosive chemical applications.
-
Carbon Steel: Often used for outer components or in low-temperature applications.
The choice of material depends on the type of fluid or gas being transported, the operating temperature, and pressure conditions.
Key Functions of Metal Expansion Joints
1. Absorbing Thermal Expansion
Pipes expand and contract as temperatures fluctuate. Metal expansion joints absorb this thermal movement, preventing stress and damage to the system.
2. Reducing Vibration
In systems involving pumps or compressors, vibrations can cause fatigue over time. Expansion joints act as vibration dampers, extending equipment life.
3. Compensating for Misalignment
During installation or due to foundation shifts, slight misalignments may occur. Metal expansion joints accommodate these deviations without affecting flow performance.
4. Preventing System Failure
By absorbing dynamic forces and stress, these joints prevent cracks, leaks, or ruptures in the pipeline—thus ensuring operational safety and reliability.
Applications of Metal Expansion Joints
Metal expansion joints are widely used across multiple industries due to their versatility and durability. Some of the major applications include:
-
Power Plants: To manage thermal expansion in steam and gas pipelines.
-
Petrochemical Industry: For handling high-pressure, high-temperature, and corrosive fluids.
-
HVAC Systems: To absorb vibration and movement in ducting systems.
-
Shipbuilding: Used in exhaust systems and engine pipelines.
-
Water Treatment Plants: To reduce mechanical stress in large piping networks.
-
Manufacturing Plants: In processes involving heating, cooling, or pressurized gases.
Their ability to perform in extreme environments makes them essential for maintaining process integrity and efficiency.
Advantages of Metal Expansion Joints
1. Enhanced Flexibility
They offer multidirectional movement absorption without compromising the system’s structural integrity.
2. Durability
Made of robust metals, these joints withstand high pressure and temperature conditions, ensuring long operational life.
3. Space Efficiency
Metal expansion joints can be installed in compact spaces, eliminating the need for complex pipe loops or flexible hose assemblies.
4. Reduced Maintenance Costs
By mitigating stress and vibration, they reduce wear and tear, thereby lowering the frequency and cost of maintenance.
5. Improved System Efficiency
They help maintain a consistent flow by reducing resistance and stress, improving overall system efficiency.
Installation and Maintenance Tips
Proper installation and maintenance are vital for ensuring the longevity and performance of metal expansion joints.
-
Alignment: Ensure proper alignment between the joint and the piping system to avoid unnecessary stress.
-
Support: Provide adequate support to prevent weight-bearing on the joint.
-
Movement Testing: Allow for the designed movement range; overextension can damage the bellows.
-
Inspection: Regularly check for signs of corrosion, leakage, or fatigue.
-
Replacement: Replace worn-out joints promptly to avoid system downtime or accidents.
Following these best practices ensures safety, reliability, and optimal functionality over time.
Future Trends in Metal Expansion Joint Technology
With advancements in material science and manufacturing, the next generation of metal expansion joints is becoming more efficient and reliable. Innovations include:
-
Smart Monitoring Sensors: To detect temperature and pressure changes in real-time.
-
Advanced Alloys: For higher resistance to corrosion and extreme temperatures.
-
Laser-Welded Bellows: Offering improved flexibility and fatigue resistance.
These innovations are driving the evolution of piping systems toward greater efficiency and longevity.
Conclusion
Metal expansion joints are an essential component of modern piping systems, offering safety, flexibility, and durability in demanding environments. Their ability to manage thermal expansion, vibration, and misalignment ensures seamless operation across industries. As technology evolves, these joints continue to adapt—becoming smarter, stronger, and more efficient than ever before. For industries seeking long-term reliability and performance, metal expansion joints remain the ultimate choice.
